evalink device: ipTNA4i
The certified and modular alarm transmission device for high-security applications.
To provide you the best way to connect to the evalink ecosystem, we offer you the ipTNA4i - the EN 54-21 and VdS certified transmission device. All devices are dual-path devices with dynamic encryption and permanent connection monitoring, whose monitoring cycle can be flexibly adapted to your needs.
Together with the evalink platform, the devices offer you a secure and reliable transmission of events from alarm and/or technical systems to your desired targets.
Main features
3 x USB 2.0
2 x Ethernet
1x 4G Modem (optional)
2 x Power Supply Inputs (10 ... 36VDC)
10 x Inputs
4 x Outputs (Relays)
1x Tamper
Technical specifications
Temperature range
0 - 40 °C (non-condensing)
Dimensions
160 x 100 x 29 mm (Eurocard)
Power supply
10 ... 36VDC
120mA @ 12VDC
Screw Terminals
Inputs
< 15VDC Screw Terminals
Outputs
60VDC / 42.5VAC / 0.5A
Screw Terminals
Bistable Relays
Certifications
EN54-21:2006
EN50136-2:2013
EN50131-10:2014
VdS 2344:2014-07
VdS 2110:2017-09
VdS 2471-S1:2015-06
VdS 2203:2001-03
VdS 2463:2007-08
Accessories
Physical interfaces

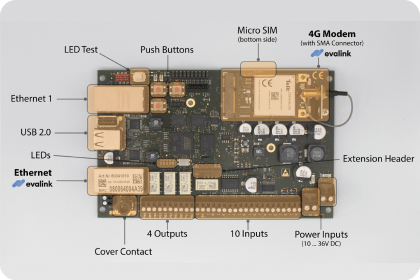

The ipTNA4i features a lot of (physical) interfaces out of the box to interact with all kinds of systems.
Data interfaces
To allow third-party devices to send data, the TNA features many interfaces to interact with.
For example, MQTT allows a broad variety of devices, such as PLCs or IoT devices, to send data. Making the TNA the ultimate gateway to connect many different systems to evalink.
Expandability
Because nobody can predict the future of technology, the TNA was built to be modular. Thanks to the USB ports, the functionality can be enhanced easily, for example, to add support for an RS-232, RS-422, or RS-485 interface. The pin header allows for a close integration of modules, for example, our PSTN to IP module or the I/O Module-
4G Mobile
4G Mobile can be used as a backup path to the Ethernet connection towards evalink. The connection is monitored 24/7 just like Ethernet with no additional costs.
I/O Module
If you require more than 10 inputs and/or 4 outputs you can double them by using the I/O Module.
PSTN to IP
Older alarm panels may utilize the analog phone line to transmit alarms. With the Dial Convert Module these alarms can be received by the TNA.
Wi-Fi Client Mode
Running an Ethernet cable may be expensive or simply not possible. With the Wi-Fi Client Mode Adapter the TNA can connect to the local Wi-Fi and use it as a path towards evalink.
Wi-Fi Access Point Mode
To further simplify the commissioning in difficult situations on site (i.e. no Ethernet available, no Mobile reception, ...) the Wi-Fi Access Point Adapter allows the TNA to become a Wi-Fi Access Point. This way you can access it from your Notebook or Smartphone via Wi-Fi to set it up.
Serial
Many alarm panels and other devices feature a serial interface on which they output (additional) data. This means you can receive serial data from any device on evalink via the TNA.
Antenna
We offer a variety of 4G antennas depending on your requirements.
Autonomous Power Supply
This housing allows for up to 72h of autonomy. It contains a lead-acid battery and the corresponding electronics for charging and monitoring.
